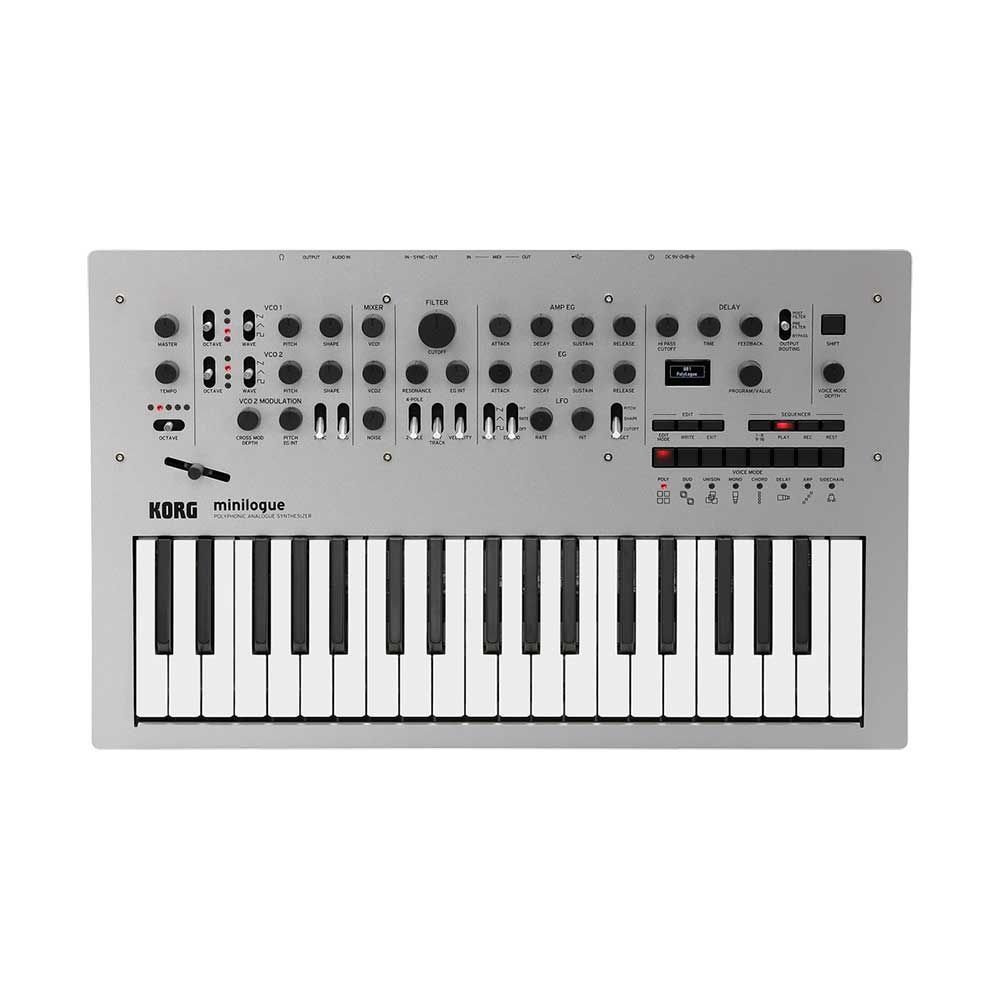

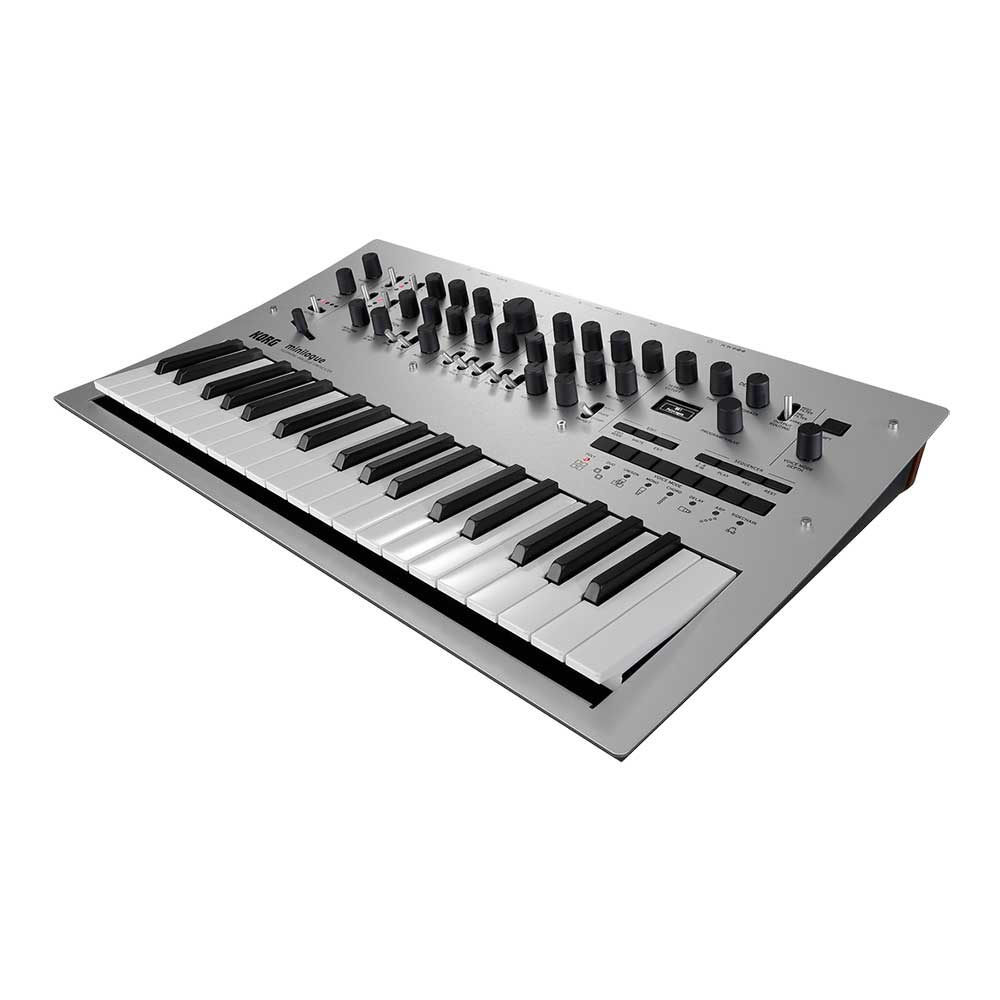

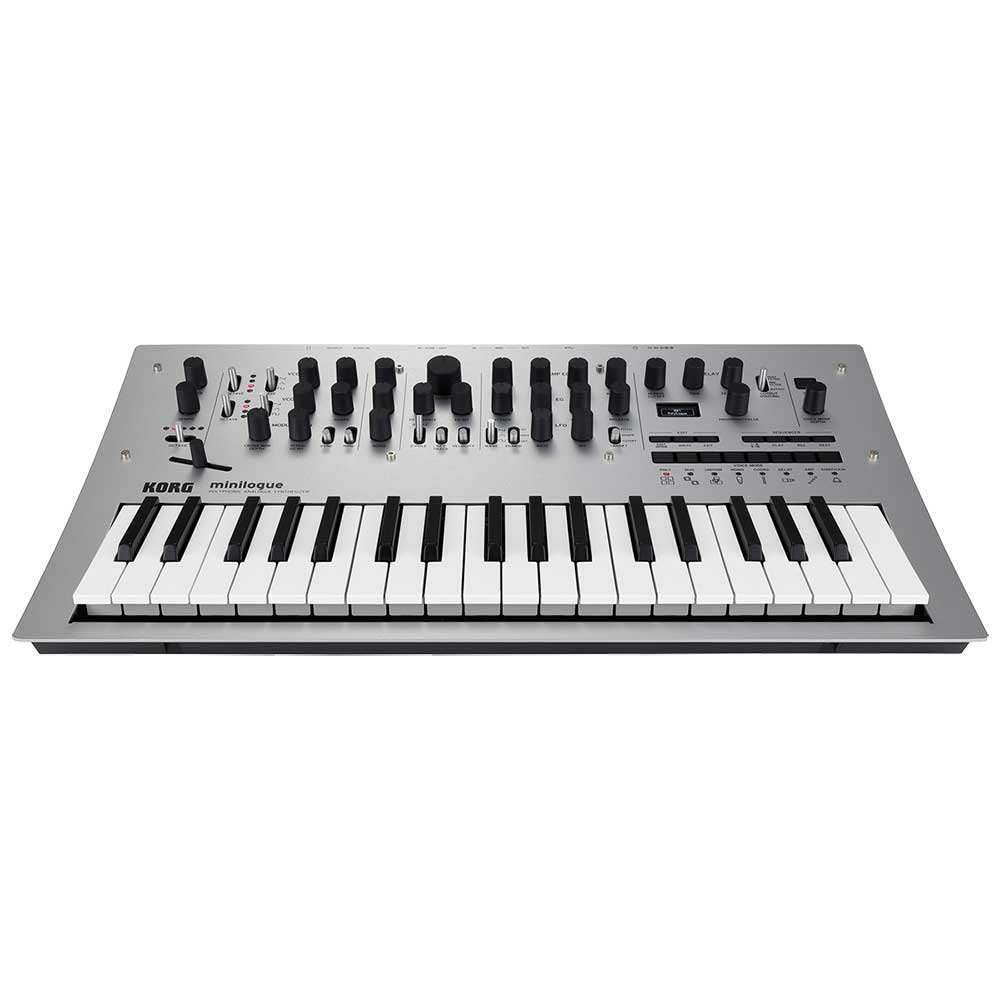

Korg Minilogue Polyphonic Analogue Synthesizer

minilogue PG

This new minilogue has a unique polished gray color that reflects beautifully in various lighting, ranging from silver, to dark gray, to black.

The original minilogue received the internationally prestigious German “Red Dot Award” given to products that demonstrate excellent industrial design. This limited-edition model gives the original a new color panel and a see-through black finish on the wooden rear panel as well, with a cool and distinctive appearance that will be recognizable at a glance.

* Specifications other than the color are identical to the original minilogue.

• Flexible, powerful four-voice analog synthesizer
• Fully programmable, with 200 program memories (100 sounds included)
• Voice Mode lets you flexibly configure the four voices
• Automatable 16-step polyphonic note and motion sequencer
• Oscilloscope function shows the waveform visually

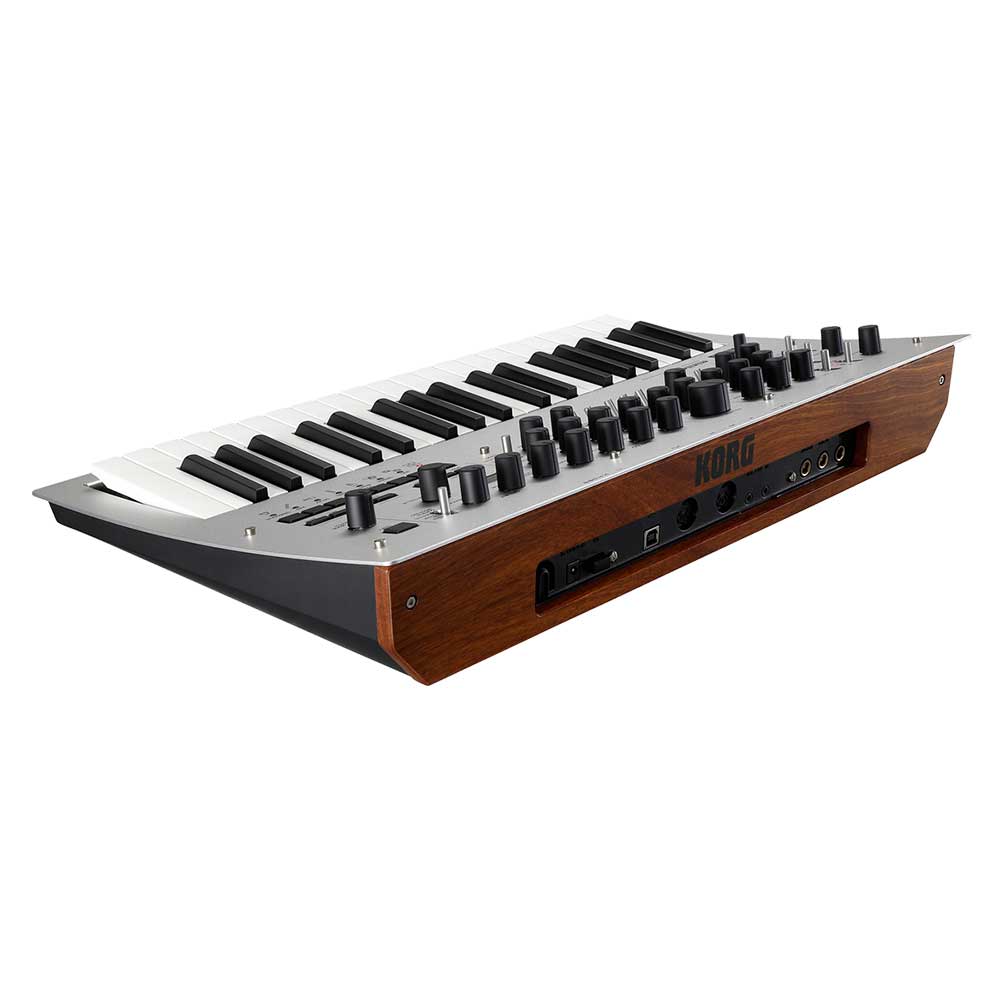

• Rugged and stylish with aluminum top panel, chassis-mounted pots, rubber-coated knobs, and real wood back panel
• MIDI, USB MIDI, and Audio Sync for all types of in-studio and live connectivity, including direct sync with SQ1, volca, electribe, and more

The synth circuits for minilogue are all new ground up designs, delivering a synthesizer experience like no other. Unprecedented in this class, it’s a four-voice polyphonic true-analog synth with an interface that's designed for accessibility. Whether you're performing live or producing in the studio, the minilogue is the fastest way for the user to explore and implement real analog synthesis in any situation.

The structure consists of 2VCO, 1VCF, 2EG, 1VCA, and 1LFO. The minilogue's unique wave shape capability lets you fine tune the oscillators’ harmonics, creating the most divine sounds and compositions. The minilogue is also equipped with a variety of powerful types of modulation including cross modulation, oscillator sync, and ring modulator, as well as a delay with a high-pass filter. Powerful sound creation and rich variety are the true hallmarks of an analog synthesizer.

Polyphony and Presets – Perfect.

minilogue goes beyond analog synths in its price range by adding 200 preset locations. Select a program for instant access to great sounds - - ranging from thick basses to deep pads to brilliant polyphonic leads and atmospheric sounds. No need to have deep synthesis knowledge; just choose a sound and tweak - a workflow that is very familiar with musicians today. For those who want to dive deeper into the heart and soul of minilogue’s engine, the minilogue hold 200 programs; with 100 editable factory programs included, and 100 locations serving as blank canvases on which to create your next analog masterpiece. Each preset can also hold a step sequence and delay settings along with the sounds you create.

In addition, the Sound Librarian lets you manage your program data.

Voice modes.

Selectable voice modes let you freely configure the four voices for performance. The voices can be set to four note polyphony for chords or layered for thick basses and leads. Other modes cover a range of sounds from octave shifted bass explosions to delicately staggered layered triggering.

Eight voice modes
- POLY - operates as a four-voice polyphonic synthesizer
- DUO - operates as a unison two-voice polyphonic synthesizer
- UNISON - operates as an all-unison mono synthesizer
- MONO - operates as a mono synth with sub-oscillator
- CHORD - produces chords
- DELAY - voices 2--4 sound consecutively at a delay following voice 1
- ARP - an arpeggiator operates with up to four voices
- SIDE CHAIN - when a note sounds, the volume of the preceding voice is lowered

16-step sequencer.

Get creative with the intuitive 16-step sequencer with motion sequence recording capabilities, and make your sound truly come to life. The minilogue provides real-time recording with overdubbing, and step recording that lets you record simply by consecutively specifying notes, giving you a great way to create phrases and performances.

Oscilloscope visualizes the sound.

The OLED display will show the waveform as you sculpt your sound. Visual feedback is both educational and entertaining, and represents a first on a hardware synthesizer.

Build quality.

The uniquely curved, sand-blasted 2mm aluminum front panel, metal shaft potentiometers, solid, chassis-mounted metal shaft potentiometers and rubber-coated knobs give the roadworthy minilogue a standout look and feel to complement its powerful and dynamic sound creation capabilities.

Sync with groove machine.

In addition to the standard MIDI connectors, the minilogue provides a sync connector that can be easily connected to Korg's groove machines. Connect this to a volca series unit, an electribe, or the SQ-1, and experience a session with synchronized sequencer playback.

A dedicated soft case

With a dedicated soft case SC-MINILOGUE, you can transport easily the minilogue.

ARTISTS Jimmy Edgar

"The minilogue is fun and easy, which is sometimes overlooked in hardware. I want something I can generate musical sounds, and fast. Working on the presets was great, I breezed through a lot of different styles as the architecture isn’t so deep. I also like the OLED screen, as its 2016 so its appropriate that interfaces start improving." Richard Devine

"The minilogue has been an insane amount of fun to use. The interface is very easy and intuitive. I love its small portable size and 4 voice analog engine sounds incredible."

Hear, Try and Compare the Korg Minilogue Polyphonic Analogue Synthesizer in our showroom

Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Korg range including the Minilogue Polyphonic Analogue Synthesizer and compare it with Yamaha, Roland, all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.

We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.

Keyboard	37-keys (Slim-key, velocity sensitive)
Sound Generation	Analog synthesis
Maximum Polyphony	4 voices
Program	200 programs (100 Presets / 100 Users) Each program includes voice mode and sequence data settings Up to eight favorite programs can be registered
Voice Modes	8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain) VOICE MODE DEPTH can vary different parameters in each mode
Main Synthesis Parameter	VCO1	Octave, Wave (Saw, Triangle, Square), Pitch, Shape
	VCO2	Octave, Wave (Saw, Triangle, Square), Pitch, Shape
	VCO2 MODULATION	Cross Mod Depth, Pitch EG Int, Sync, Ring
	MIXER	VCO1, VCO2, Noise
	FILTER	Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
	AMP EG	Attack, Decay, Sustain, Release
	EG	Attack, Decay, Sustain, Release
	LFO	Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
	DELAY	Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)
Sequencer	16-step polyphonic sequencer Motion sequence can be used on up to four parameters
Controls	41 dedicated panel controls deliver immediate parameter access A slider can control different parameters for each program
Display	Real-time OLED oscilloscope provides visual feedback of parameter changes

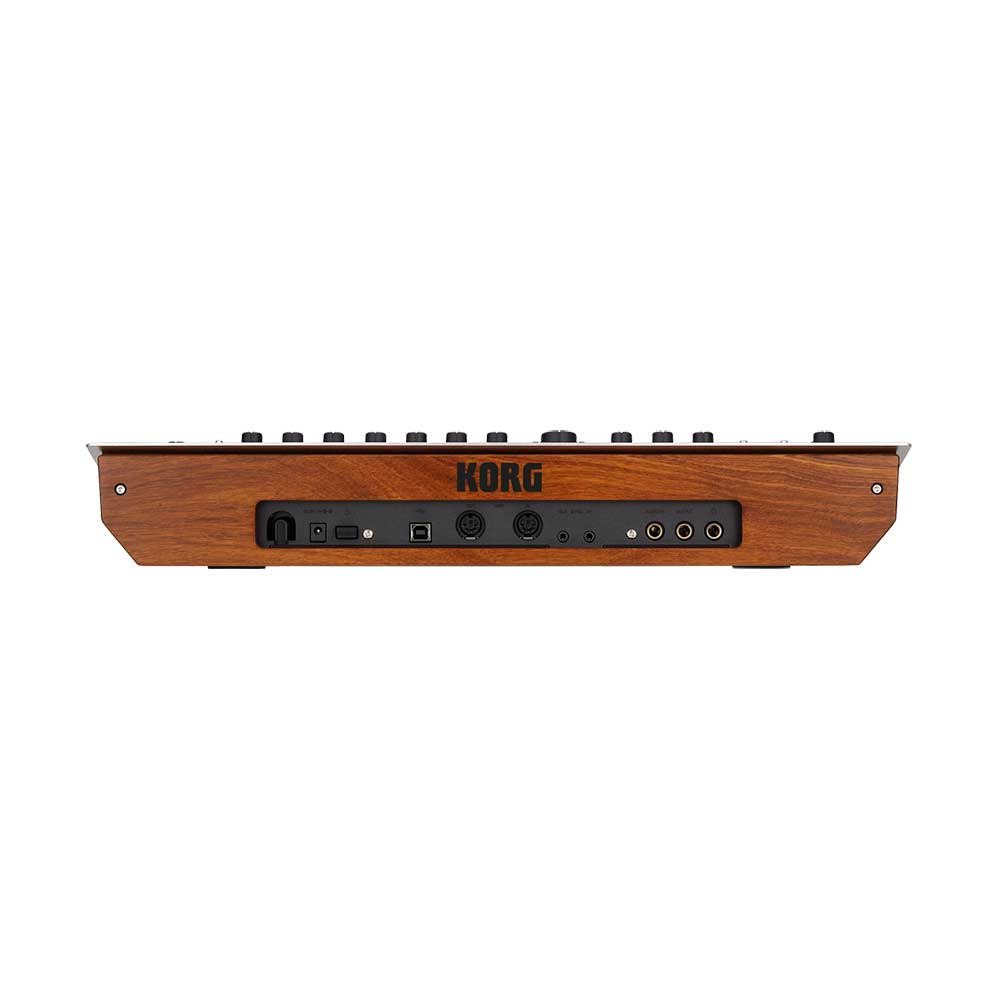

Connectors	Headphones (6.3mm stereo phone jack) Output (6.3mm monaural phone jack) Audio In (6.3mm monaural phone jack) Sync In (3.5mm monaural mini jack) Sync Out (3.5mm monaural mini jack) MIDI In MIDI Out USB Type B
Power Supply	AC adapter (DC9V)
Power Consumption	8 W
Dimensions (W x D x H)	500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"
Weight	2.8 kg / 6.17 lbs.
Included Items	AC adapter
