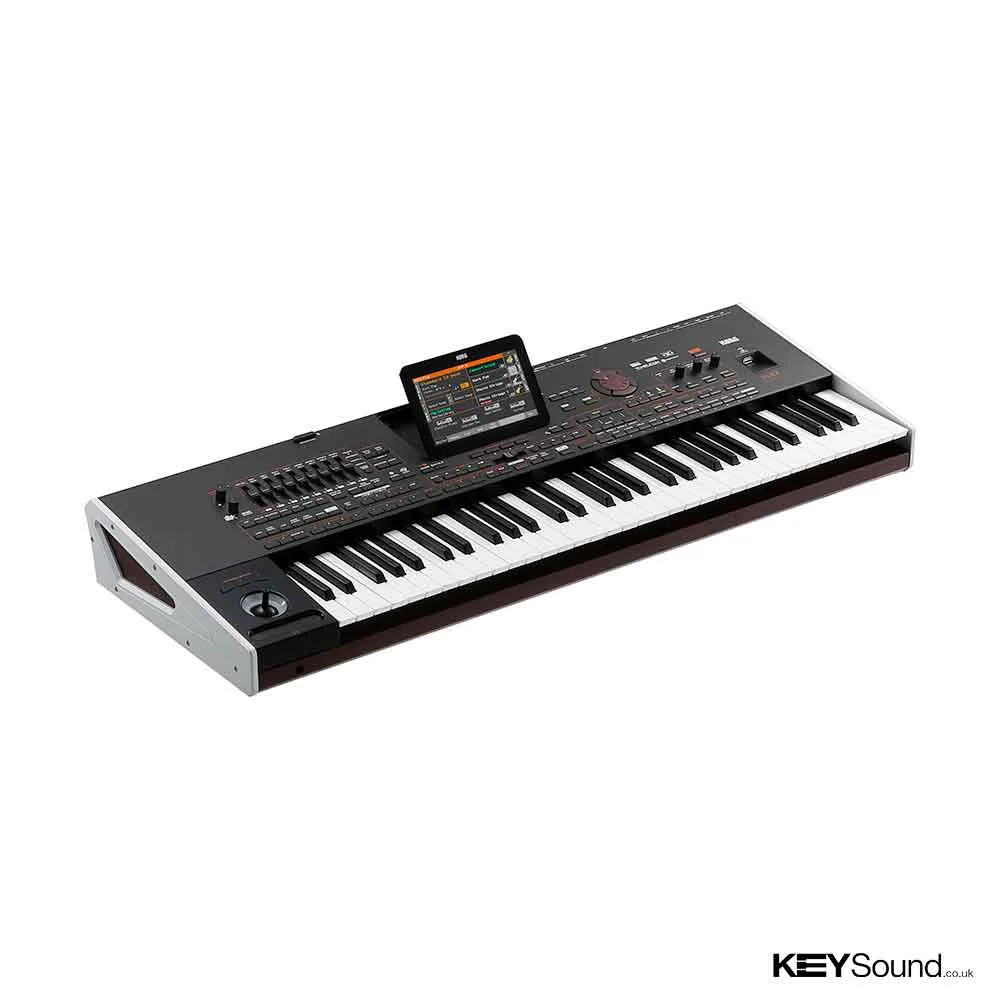

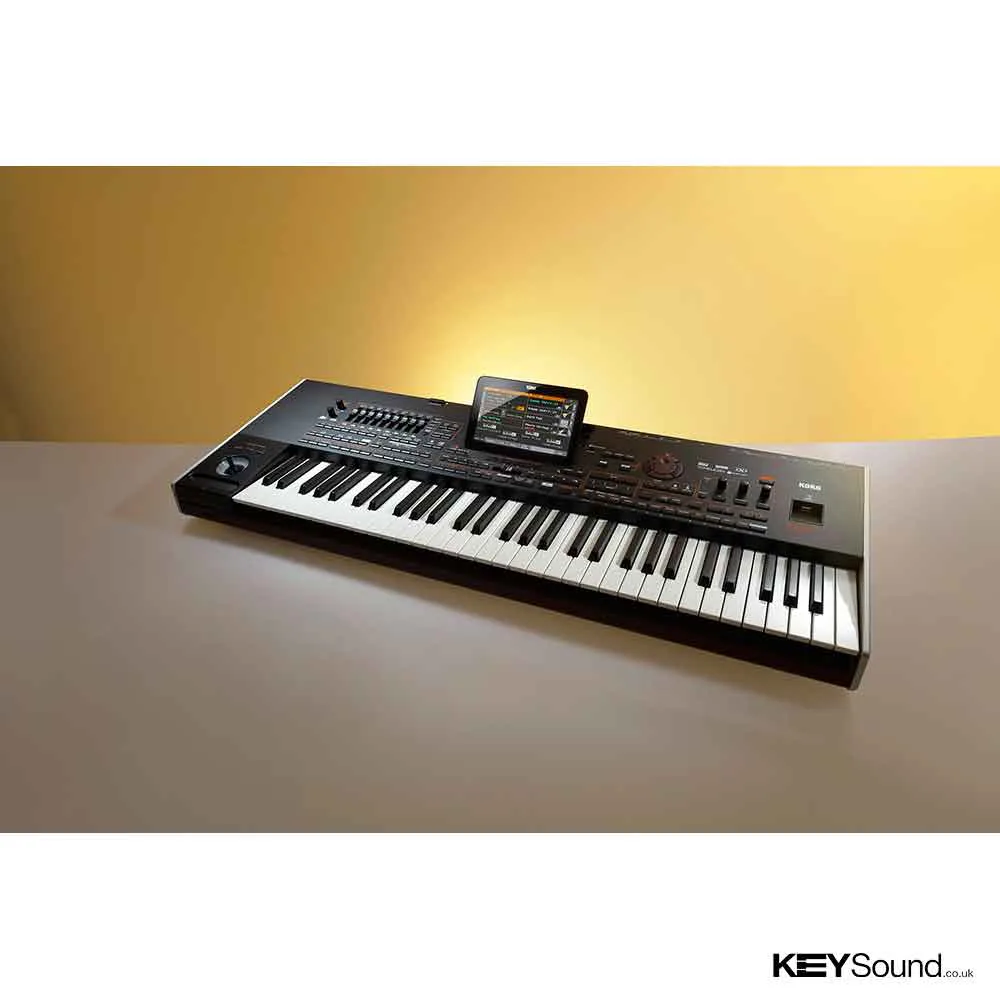

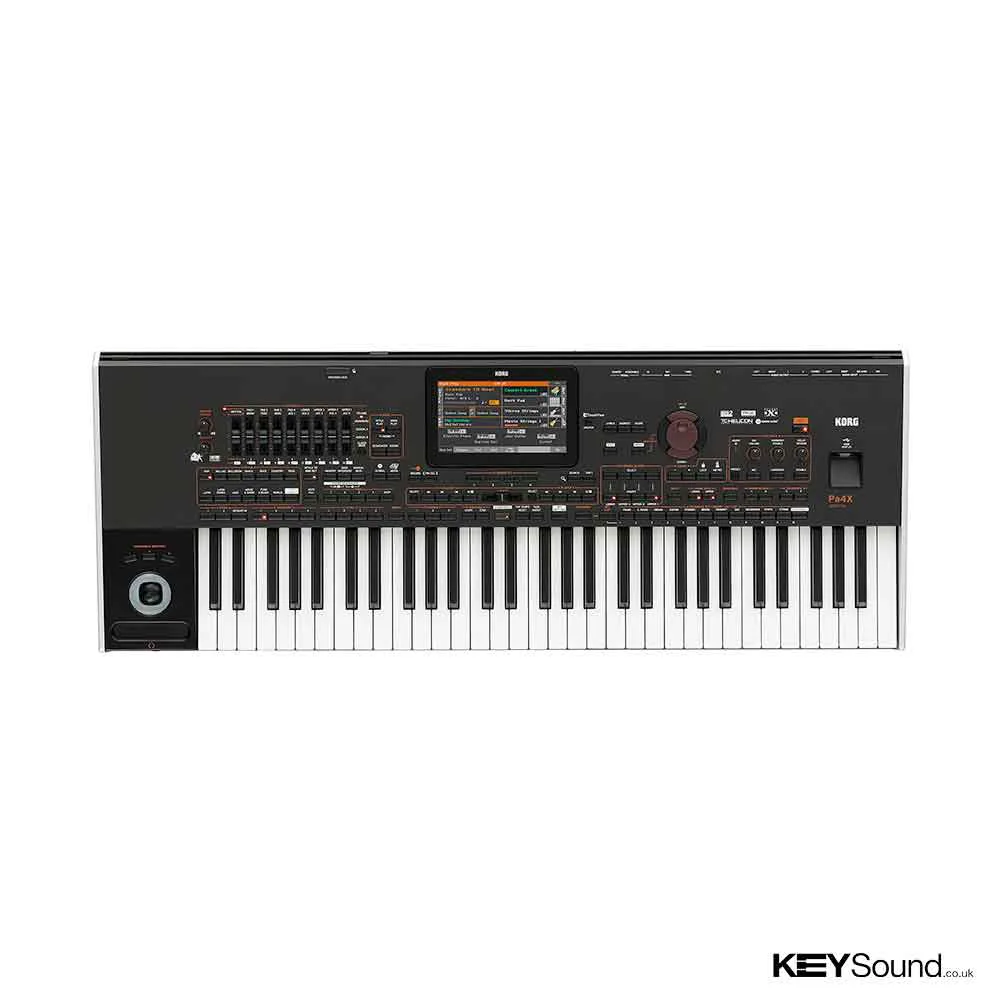

Korg PA4X 61 Oriental Professional Arranger in Black

Korg PA4X 61 Oriental Professional Arranger in Black

Korg
In Stock
In Stock
3 Year Warranty
Part Exchange
Select Your Bench and Accessories
Price £2955.00
Click to Checkout With Finance
The Pa4X ORIENTAL 61 Keys Professional Arranger is more than a keyboard. It’s your backup band; your accompanist; and your musical director. Whatever music you are going to play, from Western to Oriental - Arabic, Persian, Turkish - the Pa4X ORIENTAL delivers.
New For 2016

Choose the Musical Partner to Deliver the Perfect Oriental Performance.

The Pa4X ORIENTAL Professional Arranger is more than a keyboard. It’s your backup band; your accompanist; and your musical director. Whatever music you are going to play, from Western to Oriental - Arabic, Persian, Turkish - the Pa4X ORIENTAL delivers.

Ideal for composing, recording, and combo use, the intuitive Pa4X ORIENTAL really comes to life in the hands of the solo keyboard performer and entertainer. And nowhere else is the flawless operation and superior sound of one keyboard instrument more in the spotlight. To that end, every aspect of KORG’s industry-leading Professional Arranger series has been re-examined and improved, resulting in the Pa4X ORIENTAL—an instrument without equal. The all-new EDS-X (Enhanced Definition Synthesis – Expanded) sound engine delivers unprecedented realism and highly detailed sounds. KORG’s exclusive DNC (Defined Nuance Control) provides highly-articulate solo instruments. Partnerships with Waves Audio and TC Helicon provide state-of-the-art audio processing and vocal effects. The Oriental version comes with a bonus package including the most effective musical resources available from top-class Middle East libraries.

  • Oriental version add Sounds, Drumkits, Styles, Keyboard Sets and Pads from Turkish, Persian and Arabic acclaimed libraries
  • 15 easy access custom preset for Quarter Tone scales + cancel button
  • 2 models to choose from: 76-key or 61-key
  • Semi–weighted keys with velocity sensitivity and aftertouch
  • Elegant, streamlined aluminum cabinet

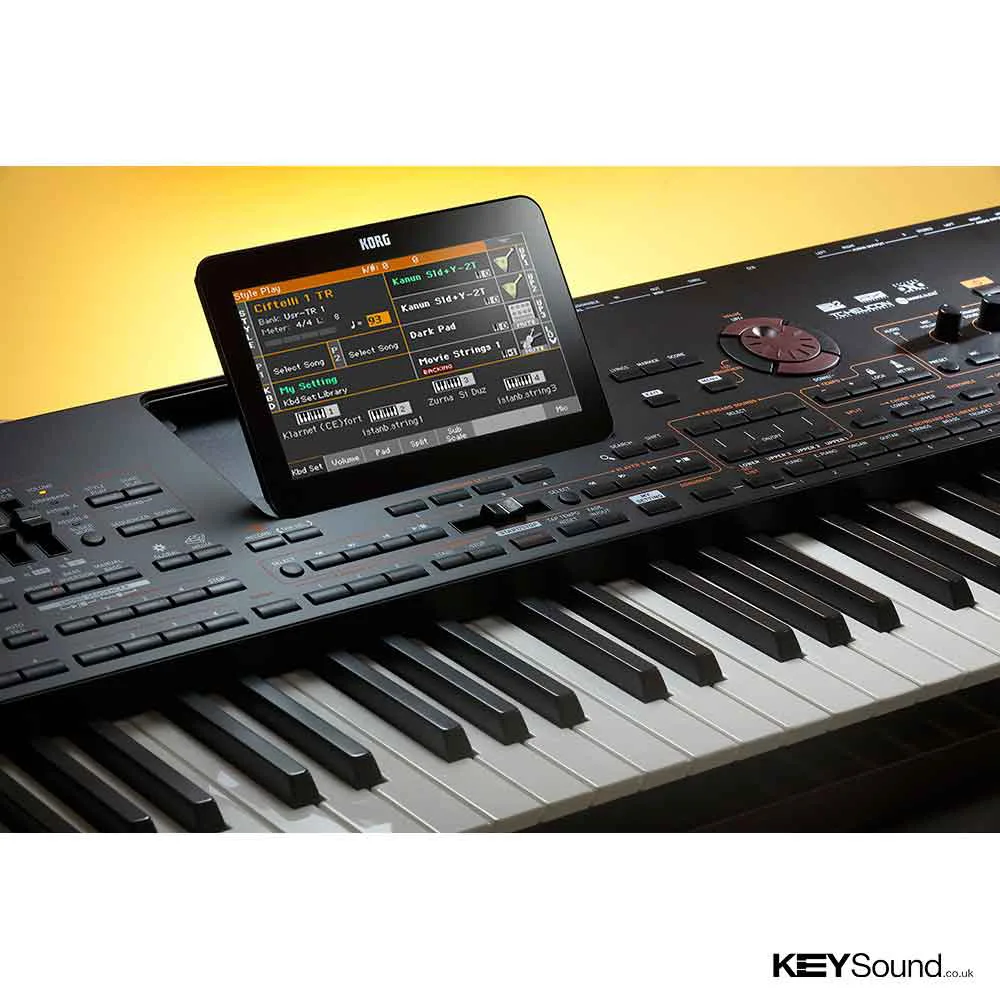

  • 7-inch capacitive TouchView™ display with tilting system
  • Easy-to-use panel layout and intuitive redesigned graphical interface
  • New EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine
  • - Improved realism and pristine sound quality
  • Massive internal ROM with a renewed PCM database
  • - Plus up to 400 MB of user PCM data
  • Over 1,650 sounds (more than 190 Oriental Sound and 60 Oriental DK) including GM and XG sets
  • 512 user Sound and 128 user Drumkit locations with full editing features
  • Digital Drawbar Organ sound engine
  • DNC (Defined Nuance Control) and realtime articulation:
  • - Three assignable switches
    - Four-way joystick
    - Ribbon controller
  • Complete sample recording and editing features
  • Import audio waveforms in the most common formats including Wav, Aiff and SoundFont™.
  • Over 650 Styles (more than 190 Oriental) with Intros, Endings, Fills, Count-ins, and Breaks
  • - 4 Keyboard Sets and 4 Pads per Style,
    - 13 Internal user banks and 13 Direct user banks locations for unlimited storage
  • Guitar Mode 2 provides more realistic guitar parts
  • Chord Sequencer function in Style Play mode records any chord progression on-the-fly
  • - Chord Sequences can be saved in each Style and SongBook entry
  • Search function for quickly locating any musical resource
  • New standard MidiFile to Style converter feature
  • Keyboard Set Library includes a collection of best ready to play sounds
  • - Keyboard Sets can be recalled even from Direct locations
  • Multiple Effects processors – 148 effect types:
  • - 4 Insert and 3 Master effects for accompaniment parts,
    - 1 Insert and 2 Master effects for Keyboard Tracks
  • Waves MAXXAUDIO Mastering Suite:
  • - MaxxEQ™, MaxxBass™, MaxxTreble™, MaxxStereo™, MaxxVolume™
  • TC Helicon® Vocal Processing:
  • - Four-part Harmonizer, Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)
  • Double MP3/MIDI file players with recording capability, X-Fader and Vocal Remover
  • - Score, Chords, and Lyric display
    - Compatible with most common lyrics formats including graphical (+G) for MP3.
    - Lyrics can be showed in their original languages (except Oriental and Arabic Languages)
  • Enhanced compatibility for GM and XG songs
  • Fully programmable SongBook database based on Styles, SMF, Karaoke, and MP3
  • - Instant recall of any song setting
    - User-definable Set Lists assignable to panel buttons
    - Filtering and ordering options
  • Multi-language extended character set
  • Internal hard drive
  • - Pa4X ORIENTAL 76: Standard
    - Pa4X ORIENTAL 61: Optional
  • MicroSD card slot (card not included) allows for mass storage and data protection
  • Optional PaAS speaker bar—connects without wires or power supply

Pa4X ORIENTAL Professional Arranger

Pa4X ORIENTAL is a powerful addition to KORG’s internationally acclaimed Pa Series. Providing you with the most up-to-date collection of quality integrated sounds and styles, Pa4X ORIENTAL is an excellent songwriting and performance partner. In addition to all the functionality, sounds and styles of the standard Pa4X, the Pa4X ORIENTAL also contains musical data specific to Middle Eastern music genres. Stringed instruments, winds, various percussion instruments, and many more sounds are included along with dozens of extra Styles that are suitable for traditional and modern music.

Superior Sound; Authentic Articulation

The Pa4X ORIENTAL relies on KORG’s advanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine, and comes complete with over 1,650 ready-to-play sounds. This realistic collection offers a vast gathering of classic and contemporary keyboards, band and orchestral instruments, plus electronic and acoustic instruments—from techno to folk. Sounds have been painstakingly captured using state-of-the-art methods that allow the finest of details to be accurately reproduced.

The Pa4X ORIENTAL relies on KORG’s advanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine, and comes complete with over 1,650 ready-to-play sounds. This realistic collection offers a vast gathering of classic and contemporary keyboards, band and orchestral instruments, plus electronic and acoustic instruments—from techno to folk. Sounds have been painstakingly captured using state-of-the-art methods that allow the finest of details to be accurately reproduced.

More than 140 authentic drumkits—including Ambient Drums—breathe life into any rhythmic passage; the Drum Family Easy Editing feature offers total control over volume, pitch, EQ, and more. An additional 400 MB of user memory allows new sounds to be added quickly and easily using KORG, WAV, AIFF, and SoundFont™ formats. Conduct your own sampling session and take advantage of the complete sample recording and editing features found in the Pa4X ORIENTAL.

Streamlined Construction; Intuitive Design; Fantastic Feel

Both the Pa4X ORIENTAL 76 and Pa4X ORIENTAL 61 feature a naturally-responsive and semi-weighted keybed that provides both velocity and aftertouch sensitivity. The dynamic response is adjustable to accommodate any playing technique and any level of musicianship—from the hobbyist to the demanding professional.

The main panel has been optimized to ensure that all controls are ergonomically positioned and intuitively located to make every performance feel smooth and natural. Big, bright, and bold, the new capacitive TouchView display hosts a redesigned graphical interface that is easier than ever to read, even under the most demanding lighting environments. The entire screen can be tilted forward and back to provide the perfect angle for optimum viewing—on stage or off! Searching for that song, Style, or file that you were just using? The multi-function Search feature can find what you are looking for—quickly! Styles and Keyboard Sets can be read directly from a USB drive—without the need to load data in the internal memory.

For those seeking an all-in-one solution, experience the optional PaAS Speaker System. This easy-to-use add-on provides spectacular sound for home and rehearsal use—or as a personal performance monitor. The bi-amped PaAS sound system contains five loudspeakers in a sleek cabinet that attaches directly to your Pa4X ORIENTAL. Best of all, installation takes only seconds; no tools are required; no cables are needed, and no power supply is necessary.

Do it with Style

Each Style is a fully realized musical environment dedicated to reproducing a specific musical genre, and the Pa4X ORIENTAL is packed with over 650 of them. Play along with these styles which cover song styles from around the world, from the past right up to today. These highly-versatile Styles have been created by KORG’s international sound team to provide an extremely musical experience. New Styles have been added, and many cherished Styles have been brought up to date with new sounds, enhanced effects, and re-balanced mixing. In addition to drums, percussion, and bass, each Style can provide up to five additional instrument parts that follow your chord changes and voicings, as well as the tempo. Guitar Mode 2 makes the Style’s guitar tracks more authentic than ever before possible. In addition, each Style can be enhanced by using the four Pads. Each Pad can add a one-time or repeating riff, a percussion part, an accent sound, or even a sound effect. You can even program your own Pad riffs and phrases. And of course, each Style features an assortment of Intros, Variations, Breaks, Fill-Ins, Endings—even a count-in. You may also create your own brand-new Styles, or customize the existing ones.

The convenient Chord Sequencer function can quickly record and loop your chord progressions on the fly in Style Play mode; this can be useful not only for practice, but for freeing up your left hand while performing live. These Chord Sequences can now be also saved as Style and SongBook entries for easy recall.

The latest Styles – today!

Thanks to an all new built in SMF (Standard MIDI File to Style converter), you can quickly and easily have on board styles of the latest songs! Just obtain a new Standard MIDI File, load it into the Pa4X ORIENTAL and the inbuilt converter will easily and quickly turn it into a full KORG style to play any time you need it. Every musician will love the combination of latest styles and incredible KORG sound!

Studio-Quality Effects

KORG is known for studio-quality effects, and the Pa4X ORIENTAL includes the best of the KORG library. 4 Insert and 3 Master effects can be used for the accompaniment tracks, while 1 Insert and 2 Master effects can be used for the real-time keyboard tracks. Over 140 effect types are available, including reverbs, delays, vintage stomp box simulations, amp and cabinet simulators and more. In addition, each track features an EQ with Low, Mid and High controls, and a custom track EQ can be memorized in the Song Play mode—allowing your song to sound its best in any environment. The final effects are the result of KORG’s long term cooperation with Waves Audio®, the world reference in studio mastering effects. The included Waves MAXX AUDIO™ suite delivers sound that is louder and clearer, easily adapting the sound to your musical taste or correcting a problematic live scenario.

TC Helicon® Voice Processor

KORG’s long term cooperation with the world leader in vocal harmonies, TC Helicon®, continues in the Pa4X ORIENTAL. The TC Helicon Voice Processor ensures that your vocals have the highest possible sound quality: up to 4 realistic harmony voices are available, and all can be controlled using the keyboard or MIDI events. Available vocal effects include Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction plus Compressor, EQ, Gate, etc. Dedicated knobs (3) and buttons (3) for controlling the most important Voice Processor functions have been added to the top panel and placed within easy reach. The Adaptive Mic Setting—another KORG exclusive— monitors the input signal and auto-adjusts parameters such as the Adaptive Gate, EQ, Compression and the De-Esser to make the vocals sound smooth and “studio produced.” Just plug your microphone into the balanced XLR connection (phantom power available) and let the Pa4X ORIENTAL do the rest!

XDS Dual Player/Recorder

KORG’s XDS Dual Player & Recorder features a crossfade slider for providing non-stop entertainment; load one as the other plays, then crossfade between them—or create a playlist for automatic playback. Two different MP3 or MIDI files can be played simultaneously. MIDI files and even MP3 files can be transposed, sped up or slowed down. There is also a Marker Function to allow direct jumps to a given position in the song, or to create loops between song sections. The “MP3+G” (also known as MP3+Graphics) format and other popular lyric formats are supported. This feature allows MP3 files to play with lyrics and graphics that can be displayed on the built-in display or on an external monitor—or both. The Vocal Remover quickly eliminates the vocal track from MP3 songs—ideal for live karaoke! The 16-track recorder allows sophisticated levels of sequencing and editing, and also provides quick and easy song creation using the Backing Sequence and Style functions. The Pa4X ORIENTAL can record your entire performance; you can play back a song, play the keyboard, sing along, and everything will be recorded and saved as an MP3 file. You can then play that MP3 file again to add a further keyboard track or voice using the well known “sound on sound” technique.

The SongBook

Particularly helpful for live use, the SongBook is a fully programmable and easily searchable Music Database. Each entry contains all the settings required to play a particular song. The SongBook can save and access Styles, MIDI files, or MP3s and immediately recall settings such as the song title, genre, artist, tempo, volumes, sounds, muted tracks, FX settings, easy-edit parameters, 4 keyboard sets, 4 pads, TC Helicon® presets, master transpose, and much, much more. Everything needed to play your song back perfectly is in the SongBook. This incredibly useful performance feature is another KORG exclusive. A more refined Filter feature allows you to search for entries using a combination of different criteria, such as all songs containing “love” in the title AND classified as a “ballad”. The SongBook includes also a renewed Set List function, with a convenient panel-button association for fast recall, to make life easier during live gigs. With the SongBook Editor you can easily view, create, and edit your KORG Pa-Series SongBook entries and Set Lists using a Windows based computer. It can also be synchronized with iOS and Android tablets to become your handy external digital music sheet reader (third-party software required).

Connectivity, Data Storage, and Updates

In addition to the Main Left and Right outputs, the Pa4X ORIENTAL includes two additional assignable outputs. This can be ideal for isolating a part for additional signal processing or feeding an external mixer. A headphone output is conveniently located on the front panel. The microphone input uses an XLR connector, and phantom power is available. For inputs, the Pa4X ORIENTAL provides a pair of balanced 1/4" inputs (Line 1) and a stereo 1/8" jack (Line 2) for use with smartphones, mobile devices, etc. MIDI In, Out, and Thru connectors are provided, as well as a USB to computer (Device) port. The composite RCA video output delivers the score and lyric display (or simply mirrors the internal display) to an external monitor.

The Pa4X ORIENTAL 76 includes an internal hard drive (available as an option for the Pa4X ORIENTAL 61) to ensure that all your data is available for quick access when performing live. A convenient micro SD slot (with protective plastic cover) is located on the back panel to add further space for data storage and/or to be used as data protection for localized data sets sold separately by third-parties. Two USB Host ports—one on the front panel, one on the rear—make it simple to play Styles, MIDI files, and MP3 songs directly from a USB flash drive, or to perform any future system updates.

Show More
Keyboard
Pa4X ORIENTAL 61: 61 keys (C2 – C7)
Pa4X ORIENTAL 76: 76 keys (E1 – G7)
Semi–weighted keys with Velocity and Aftertouch
System
Upgradable Operating System
Multitasking, load while play feature
Sound Generator
EDS-X (Enhanced Definition Synthesis-eXpanded)
Filters with Resonance - Three band EQ for each track
Polyphony
128 Voices, 128 Oscillators
Effects
Accompaniment/Song:
- 4 Insert Effects; 3 Master Effects (148 Types)
Keyboard Tracks
- 1 Insert Effect; 2 Master Effects (148 Types)
Final Mastering Effects:
- Waves Audio Ltd. MAXX Suite:
- Includes MaxxEQ™, MaxxBass™, MaxxTreble™, MaxxStereo™, MaxxVolume™
Voice Processor Technology by TC Helicon®
Four-part Harmonizer, Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction;
plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)
Sounds / Drumkits
Factory:
- More than 1,650 Sounds including a multilayer Stereo Piano with damper/body resonance, GM/XG sound sets and more than 140 Drumkits including Ambient Drums
User Area:
- 512 Sounds, 128 Drumkits
Digital Drawbars:
- 9 Footages, Percussion, Key On/Off, Leakage (Effect section includes rotary speaker)
Defined Nuance Control (DNC) Technology
Natural Ambience Drums Sound
Full Sounds/Drumkits editing capability
User PCM RAM Memory: 400 MB
Sampling
Load KORG, Wav, AIFF and SoundFont™ formats
Save KORG, Wav and AIFF formats
Full Edit, Time Slice, Sampling feature
Styles
More than 650 preloaded Styles, freely reconfigurable
1,872 locations including the User banks and Direct function
Eight Style tracks, 4 Keyboard Sets, 4 Pads and one Style Setting per Style
Guitar Mode 2, Parallel and Fixed NTT
Style Record with Step Record, Track and Event Edit functions
Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to KBD Set Mode
Chord Sequencer
Chord Sequence recorder in Style Play mode
Chord Sequence save in Style and SongBook entries
Edit functions: delete, copy from Style/SongBook, import/export from/to SMF
Keyboard Set Library
Memorize keyboard tracks settings
1,584 locations including the User banks and Direct function
“My Setting” special Keyboard Set
Song Play
Patented XDS Crossfade Dual Sequencer Player with X-Fader Balance control
Supported formats: MID, KAR, MP3 + lyrics, MP3+G
2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
MP3 Player / Recorder
Double MP3 Player and MP3 Recorder
Transpose (+6/-5 semitones)
Tempo change (±30%)
Advanced Vocal Remover
Record MP3 files including Styles, SMF, MP3, Keyboard Tracks, Pads, Microphone and Effects
Sequencer
Quick Record (Backing Sequence), Multitrack and Step Record functions -
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF native format
SongBook
Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes
User-definable Set Lists with layout button association
Filtering and Ordering options
Compatibility
"i-Series" models: Styles
“Pa-Series” models: Style, Performance, Program/Sound, Song, SongBook, Pad
Pads
4 Assignable Pads + Stop Button - Pad Record function
General Controls
Master Volume; Fade In/Out; Keyboard-Acc/Song Balance Volume; Ensemble; Octave Transpose; Master Transpose; Quarter Tone and Arabic Scale memorized inside Keyboard Sets; Joystick (pitch + modulation); Ribbon; Mic Volume; Harmony/Double; Delay/Reverb; Mic Preset; Mic On/Off; Harmony On/Off; Double On/Off; 8 Assignable Sliders; Slider Mode; MP3 Volume; 3 Assignable Switches; Tempo +/-; Tempo Lock; Metronome On/Off; Dial; Up/+; Down/-; Search; Shift; Chord Scan (Lower, Upper); Split; Keyboard Tracks Sound Select and On/Off; Record
Control Inputs
Damper pedal (support half-pedaling with optional DS-1H pedal)
Assignable pedal/switch
EC5 multiswitch pedal
Mic/Line Inputs
Mic: Combo XLR balanced with Gain control and Phantom Power
Line 1: Left/Right Jack (1/4") Line Input, balanced
Line 2: Stereo Mini-jack (1/8") Line Input, unbalanced
Outputs
Audio Output: Left/Right, Out 1, Out 2; (1/4" TRS) balanced
Headphone Output x 1 (Front panel)
Video Out x 1, RCA type
MIDI
IN, OUT, THRU standard MIDI connectors
USB to MIDI using the USB Device port
8 user definable MIDI Setups
USB
Type A (Host) x 2 (Front/Rear)
Type B (Device) x 1 (Rear)
2.0 Hi-Speed connections
Storage
Hard Drive:
- Pa4X ORIENTAL 76 (Standard)
- Pa4X ORIENTAL 61 (optional – Hard Disk Installation Kit required)
Micro SD card: (Card not included)
- Rear panel slot with plastic cover
USB Flash Drive: (Drive not included)
- 1 Front panel port
- 1 Rear panel port
Display
7” Wide capacitive color TouchView™ TFT display
Clock
Internal System Clock
AC - Power Consumption
100-240 Volts, 50/60 Hz
0.5 Watt in standby / 16 Watt normal / 38 Watt with PaAS installed
Dimensions (W x D x H) without music stand
Pa4X ORIENTAL-76: 1,192 x 364.4 x 125.56 mm / 46.93" x 14.35" x 4.94" with display fully lowered
Pa4X ORIENTAL-61: 980 x 364.4 x 125.56 mm / 38.58" x 14.35" x 4.94" with display fully lowered
Weight
Pa4X ORIENTAL-76: 16.3 kg / 35.93 lbs
Pa4X ORIENTAL-61: 13.9 kg / 30.64 lbs
Included Items
AC Power Cable, Music Stand
DVD-ROM: includes Owner’s manuals in pdf format, Video Manual, and KORG USB-MIDI Driver
Accessories
PaAS Amplification System
ST-SV1 Keyboard Stand
HDIK-3 Hard Disk Installation Kit (for 61 keys only)
EC-5 Multiswitch Pedal
EXP-2 Foot Controller
XVP-20 Vol/Exp Pedal
XVP-10 Expression/Volume Pedal
DS-1H Damper Pedal (support half-pedaling)
PS-1 Pedal Switch
PS-3 Pedal Switch
* Appearance and specifications are subject to change without notice.
* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
Show More
