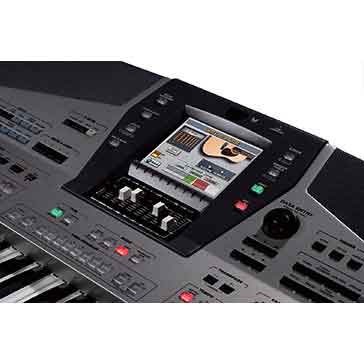

For ease of use, the E-80 incorporates a multitude of buttons and sliders on its control panel. The acclaimed Guitar Mode is built into the E-80, and has a dedicated Guitar Mode button. Moreover, a full-colour touchscreen is included for quick and simple operations.
Wide variety of sounds
Breathtaking musical content
Attractive cosmetic design
Powerful onboard speaker system
Vocal Harmonist built-in
User interface that makes you feel at home
Wide Variety of Sounds
A first-class selection of sounds has been “captured live” at the highest fidelity for the E-80. Enjoy a guitarist’s fingers sliding on the strings of an electric guitar, the natural breath of a flutist, a gorgeous 88-key split stereo-sampled piano and newly sampled drum kits (Rock, Pop and Folk) with natural resonance.
Breathtaking Musical Content
The E-80 features 350 Styles created by a professional team of international programmers who captured their local musical preferences. All of these Styles sound incredibly “live,” and are expertly mixed and mastered. Individual EQ for each tone and drum instrument is provided, plus three dedicated multi-effects for each Style/Song.
Attractive Cosmetic Design
The outstanding new cosmetic design of the E-80 music workstation comes from a top Italian design studio. Truly, the E-80 is a treat for the eyes and the ears.
Powerful Onboard Speaker System
Thanks to its powerful 4-speaker, bi-amped sound system, complete with a Bass Reflex System and a Digital Bass Enhancers, the E-80 delivers incredible, high-impact sound.
User-Friendly Interface
For ease of use, the E-80 incorporates a multitude of switches, buttons, and sliders on its control panel. The acclaimed Guitar Mode is now available together with dedicated Guitar Mode button. Moreover, a full-colour touchscreen is included for quick and simple operations.
Vocal Harmonist built-in
The E-80’s Vocal Harmonist has over 80 different settings plus additional effects and features, including Voice-FX, Auto Pitch, Singer, Vocoder, Small/Ensemble, and Talk.
2 x Expansion Slots
The E-80 provides two SRX expansion slots, allowing users to expand and customise the internal soundset. Roland’s SRX and SR-G01 expansion board series offers a wide selection of the highest quality sounds produced in the world’s top professional studios.
Text and Image Viewer
The E-80 is able to import and show not only text files (.TXT), but also image files (.BMP). By connecting an external monitor to your E-80, you can easily display text, lyrics or photos, and even put on slide shows making your party more enjoyable!
Dual Mastering Tools
For detailed sound control, the E-80 provides separated mastering tools (Parametric EQ, Multi-Band Compressor) for the Arranger and Solo part.
Hear, Try and Compare the Roland E80 Arranger Keyboard in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Roland range including the E80 Arranger Keyboard and compare it with
Yamaha, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Keyboard buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
Keyboard
61 keys velocity sensitive with aftertouch Sound Source Max polyphony
128 Tones
1100 panel tones, 54 Drums kits, dedicated EQ for each Oscillator (on Realtime/Style/Song parts) and for each drum instrument on Styles and Songs SRX Expansion Board slots
2 (for SRX series and SR-G01) Multitimbral parts
32 Realtime Effect Processors
REVERB section: 12 Reverb; CHORUS section: 6 Chorus;MFX section: 84 Multi-FX;MASTERING TOOL section: Parametric EQ, Multi-Band Compressor;HARMONIC BAR section: Rotary, Vibrato and Overdrive; EXTERNAL AUDIO INPUT: 84 effects; MIC INPUT section: Noise Gate, Compressor, 9 Reverb, 9 Delay;VOCAL HARMONIST section: 9 Reverb, 9 Delay, 9 Chorus Style/Song Effect Processors
REVERB section: 8 Reverb; CHORUS section: 8 Chorus; 3 x MFX section: 84 Multi-FX; MASTERING TOOL section: Parametric EQ, Multi-Band Compressor Compatibility
GM2/ GS/ XG Lite Styles Preset styles
more than 350 styles on 12 families Style Variations
4 Main / 4 Intro / 4 Ending / 6 Fill In / Break Mute on ASSIGN SW Sync Start / Sync Stop
Yes User Style Composer
8 Tracks with Micro editing / Piano Roll editing / Guitar Mode Programming / SRX tones selection Direct Media Link
Yes One Touch Setting
4 for each Style with customisation Cover
For Songs and Styles, 30 ALL, 18 Drum, 24 Bass Makeup Tools easy editing
For Songs and Styles with SRX/SR-G01 tones selection;Makeup Tools Freeze Data function;Independent 3-band EQ (with Q) management for each instrument (including each drum instrument);3 dedicated MFX for each Style/Song. Panel Controls Multi-function sliders
9 Rotary Encoder with push switch
Yes Cursor
Inc, Dec, Up, Down, Right, Left Pitch Bender and Modulation
Yes D Beam
Yes, (4 modes) Knobs
3 dedicated knobs for:Master Volume Keyboard / Accomp balance External Source Volume Keyboard Part / Part Assign Switches
Upper1, Upper2, Upper3, Lower1, Lower2, Manual Bass Display
Colour Touchscreen with selectable beep Player / Recorder Mark / Jump
Yes, 4 locations for each Song Sequencer
16-Track Sequencer, with Micro Event List / Piano Roll editing, Vocal Harmonist control track, Guitar Mode programming, SRX Tones selection, SMF to Style Converter DigiScore
Yes Lyrics Display
Yes, with automatic Chord Extractor and Text Import/Export possibility Viewer
Yes, for .txt and .bmp files Harmonic Bar
Virtual ToneWheel technology9 bars: 16’, 5-1/3’, 8’, 4’, 2-2/3’, 2’, 1-3/5’, 1-1/3’, 1’ for Upper1 / Lower1;2 bars: 16’, 8’ for Manual bass. Percussion
On, Off, 2-2/3’, 4’, Slow, Fast Leakage level
Min - Max Harmonic Bar effects
Rotary, Vibrato, Overdrive Registrations
8 sets Vocal Harmonist Mode
4 Modes: Talk, Voice-FX, Auto Pitch, Singer Programmable Harmony
3 Types: 30 Small, 30 Ensemble, 24 Vocoder Control possibility
Realtime, on 16-Track Sequencer, via MIDI IN Music Assistant / User Program registrations Music Assistant
unlimited number (approx. 580 as preloaded factory data), programmable User Program
unlimited number, 144 User Program links on each set Data Storage FDD
3.5” 2HD/2DD Internal SSD (Solid State Disk)
62,4MB (approx. 35,3MB as preloaded factory data) PC Card Slot
1 PCMCIA slot for: Microdrive (1.0-inch hard disk drive)*,Compact Flash*, Memory Stick*,SmartMedia**using Card adaptor*the E-80 system manages up to 4 GBytes of the above storage Media Type of files managed
Style, Song (.mid /.kar files), User Program, User Program set, MIDI Set, Play List, File.txt, File.bmp Other functions Guitar Mode
Yes, for Acoustic and Electric Guitars, with Stereo Doubling function Finder
Song, Style, User Program Easy Setting
Arranger, Organ, Guitar, Piano Chord Alteration System
Adaptive Chord Voicing Melody Intelligent
Yes, 18 Types, Melody Intelligent 2nd Tone customisation New dynamic Split function
Yes, two modes Tap Tempo
Yes Transpose with Singer Key Adapter
Yes, -6 ~ +5 Song Chord Extractor
Yes Fade IN/OUT
Yes, programmable Assignable SW
Yes, 2 programmable with Break Mute selection V-LINK
Yes Updating system
Yes, on Flash Connectors USB / MIDI
1 USB socket for File transfer MIDI IN, OUT, THRU sockets Audio Output / Audio Input
Audio Output: Main (L/mono, R), Metronome Output; Audio Input: External Audio Input (L, R), Vocal Harmonist Input (XLR / TRS, Phone balanced / unbalanced) Jacks
1 x Hold Pedal, 1 x Assignable Switch, 1 x Expression Pedal, 1 x FC-7 Control Pedal Video Output
Yes, for Lyrics and Chords (2 types),Text and BMP files viewer Phones
2 Internal Amplification
Speakers: 2 x 13 cm (woofer), 2 x 6,6 cm (tweeter)Rated Power Output: 2 x 35 W, 2 x 12 W (with Bass Reflex system)Dedicated speaker off switch: yes Others
Owner’s Manual, Power Cord, Music Rest, bundled CD-ROM (it contains E-80 backup data image, USB-MIDI driver (for Mac/PC), DATABASE MANAGER software) Size and Weight Width
1,176 mm
46-5/16 inches Depth
489 mm
19-1/4 inches Height
198 mm
7-13/16 inches Weight
22.5 kg
49 lbs. 10 oz.
*The specifications are subject to change without notice.
