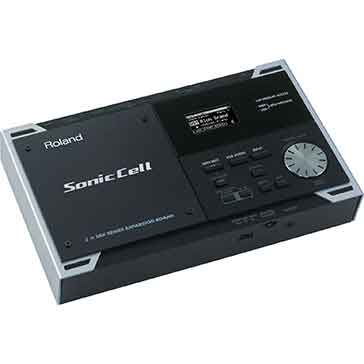

Superior Desktop Synthesis for the PC Generation
Sonar LE insideSonicCell puts the power and legendary sound quality of a Roland hardware synthesizer on your desktop. With its dual SRX expansion bay, built-in USB audio interface, and ability to play SMFs and WAV/AIFF/MP3 files, SonicCell is a dream for computer-based musicians and live performers who seek a compact, integrated pro sound module and USB audio-interface solution.
Superior Sound Module
Equipped with a state-of-the-art sound engine, SonicCell delivers the pristine sound quality of a dedicated Roland hardware synth. A remarkable new waveform set has been created for SonicCell, including a world-class collection of acoustic instruments, drums, and percussion that are expertly programmed to provide the ultimate in expression and realism. SonicCell’s internal sound bank can even be expanded and customised via its two internal SRX expansion bays. Choose from over a dozen of Roland’s famous SRX Expansion boards (sold separately) that cover a vast world of musical instruments and styles. Whether you’re driving SonicCell from a computer, another synthesizer, or a MIDI keyboard or guitar controller, you’ll enjoy unsurpassed sound quality, reliability, and flexibility.
Seamless Computer Connectivity
SonicCell is ideal for musicians who use a PC as the core of their writing, recording, and performing universe. More than a mere sound module, SonicCell is equipped with a built-in USB audio interface. Simply connect SonicCell directly to your computer’s USB port, and you can record and create music with no additional hardware required. You can even plug a microphone, guitar, or other instruments into SonicCell and record your live audio tracks directly into your computer. And since SonicCell can help minimise the burden on the computer’s processor, you’ll enjoy more efficient and stable performance. As an added bonus, a free copy of Cakewalk's Sonar LE recording software included with every SonicCell sold, as is a plug-in style PC software editor, which makes sound designing and effects programming fast and friendly. SonicCell is the perfect all-in-one solution for synthesis and recording.
Ultra-Handy Backing Machine
In addition to its high-quality synthesis and audio-interface functions, SonicCell can be used as a virtual backing band. Simply create a playlist of your songs or backing tracks with the software Playback Editor (included free with SonicCell), and transfer the playlist to a commercially available USB memory stick. Insert the stick into SonicCell’s USB port, and it will become a stand-alone song player that you can play and control onstage or anywhere you perform. SonicCell can play back WAV, AIFF, and MP3 files. It evens plays Standard MIDI Files!
Hear, Try and Compare the Roland SonicCell Expandable Synthesizer Module with Audio Interface in our showroom
Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Roland range including the SonicCell Expandable Synthesizer Module with Audio Interface and compare it with
Yamaha, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.
We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.
Input jack (LINE (R) )
Line: -30-- -10 dBu
Nominal Output Level
Output jacks: -10 dBu
SMF/Audio File Player Section
File Format
Standard MIDI File: format-0/1
Audio File: WAV, AIFF, MP3
Others
Display
128 x 64 dots organic EL graphic display

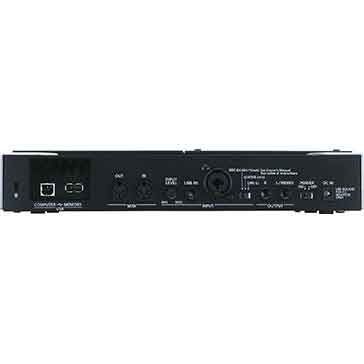

Connectors
Output jacks (L/MONO, R)
Headphone jack
Input jacks (MIC/GUITAR/LINE(L), LINE(R)) (MIC: 1/4 inch phone type or XLR type(phantom power) / GUITAR: 1/4 inch phones type(always Hi-Z) / Line (L): 1/4 inch phone type, LINE (R) (1/4 inch phone type))
MIDI Connectors (IN, OUT)
USB Connectors
: COMPUTER (supports USB MIDI and USB Audio; Hi-Speed USB port required)
: MEMORY (supports USB 2.0 Hi-Speed Flash Memory)
Power Supply
DC 9 V (AC Adaptor)
Current Draw
800 mA
Accessories
Startup Guide
Manual
CD-ROM (Sound Editor, Librarian, Playlist Editor, USB Driver)
CD-ROM (SONAR LE)
Wrench
AC Adaptor (PSB-1U)
Power Cord
USB Cable
Options
Wave Expansion Board: SRX Series
USB Memory: M-UF128
SonicCell stand and PDS-10 bracket: BKT-S
Pad Stand: PDS-10
SonicCell Editor
System Requirements
[Windows PC]
Operating System
: Microsoft(R) Windows(R) XP Home Edition/Professional
: Microsoft(R) Windows Vista(TM)
* This does not work with the 64-bit Edition of Windows(R).
CPU/Clock
: Pentium(R)/Celeron(R) processor 1.4 GHz or higher
RAM
: 512 MB or more
Hard Disk:
: 160 MB or more
Display/Colours:
: 1280 x 800 or higher/24 bit Full Colour or more
Others:
: A USB connector that supports USB Specification Revision 2.0 or higher
* Intel chipset is recommended.
* SonicCell may not perform to its full specs when used with an added USB 2.0 interface card.
: CD-ROM Drive
[Macintosh]
Operating System
: Mac OS 10.4.3 or later
CPU/Clock
: PowerPC G4 1 GHz or higher/Intel processor
RAM
: 512 MB or more
Hard Disk
: 160 MB or more
Display/Colours
: 1280 x 800 or higher/1670 million colours or more
Others
: On-board USB 2.0 port
: CD-ROM Drive
[Notes]
* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the SonicCell Applications, Roland cannot guarantee that a given computer can be used satisfactorily with the SonicCell Applications based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.
Compatibility of the Plug-in Version
* The following host applications have been verified to work properly with the plug-in version SonicCell Editor.
VSTi version
- CAKEWALK SONAR LE (Windows)
- CAKEWALK SONAR 6.2 (Windows)
- Steinberg Cubase 4 (Windows/Macintosh)
Audio Units version
- Apple Logic Pro 7.2 (Macintosh)
* The following host applications have been reported to NOT work properly with the plug-in version SonicCell Editor.
- Steinberg Cubase SX3 (Windows/Macintosh)
- Mark of the Unicorn Digital Performer 4.6 (Macintosh)
* Though all of the host applications listed above performed properly in our testing, some of them may not work due to differences in inherent manufacturer design specifications and your operating environment. We cannot guarantee all the operations in these music applications.
Size and Weight ( Dimensions )
Width
294 mm
11-5/8 inches
Depth
175 mm
6-15/16 inches
Height
55 mm
2-3/16 inches
Weight
1.2 kg
2 lbs. 11 oz.
excluding AC Adaptor
*The specifications are subject to change without notice.
