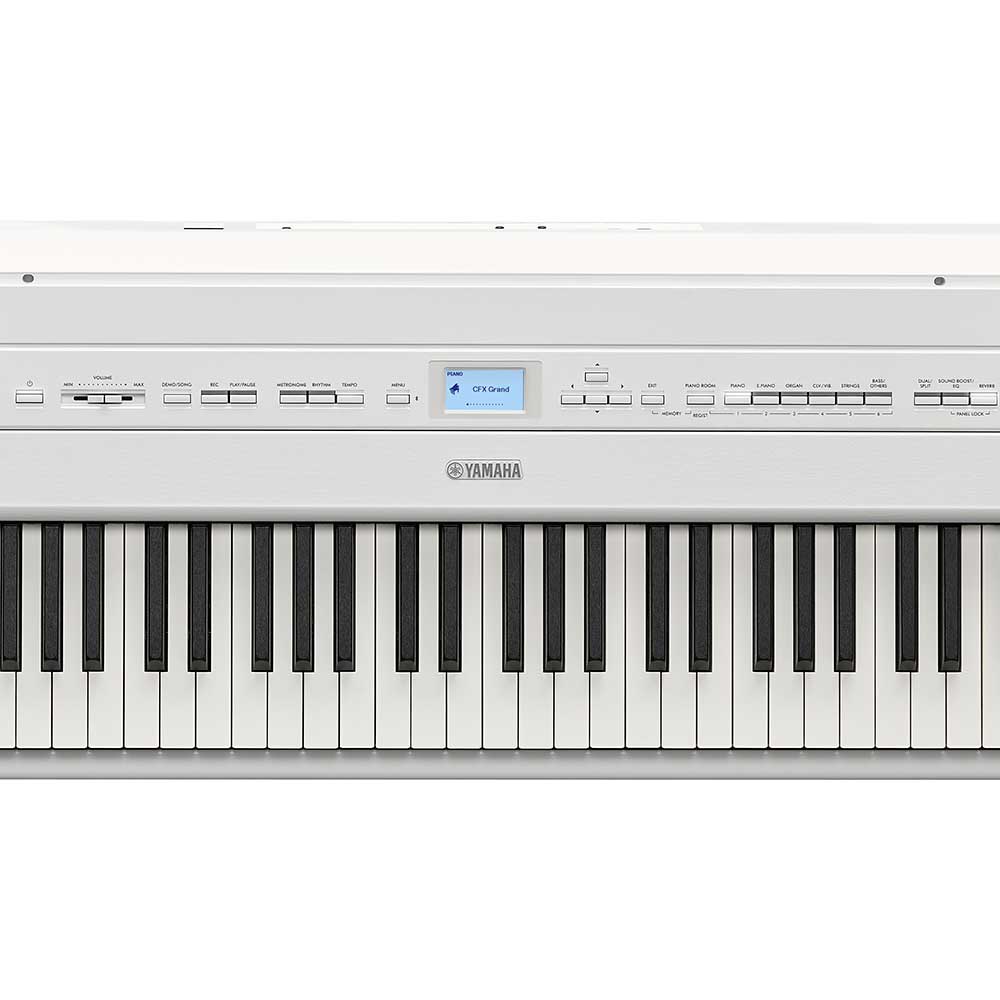

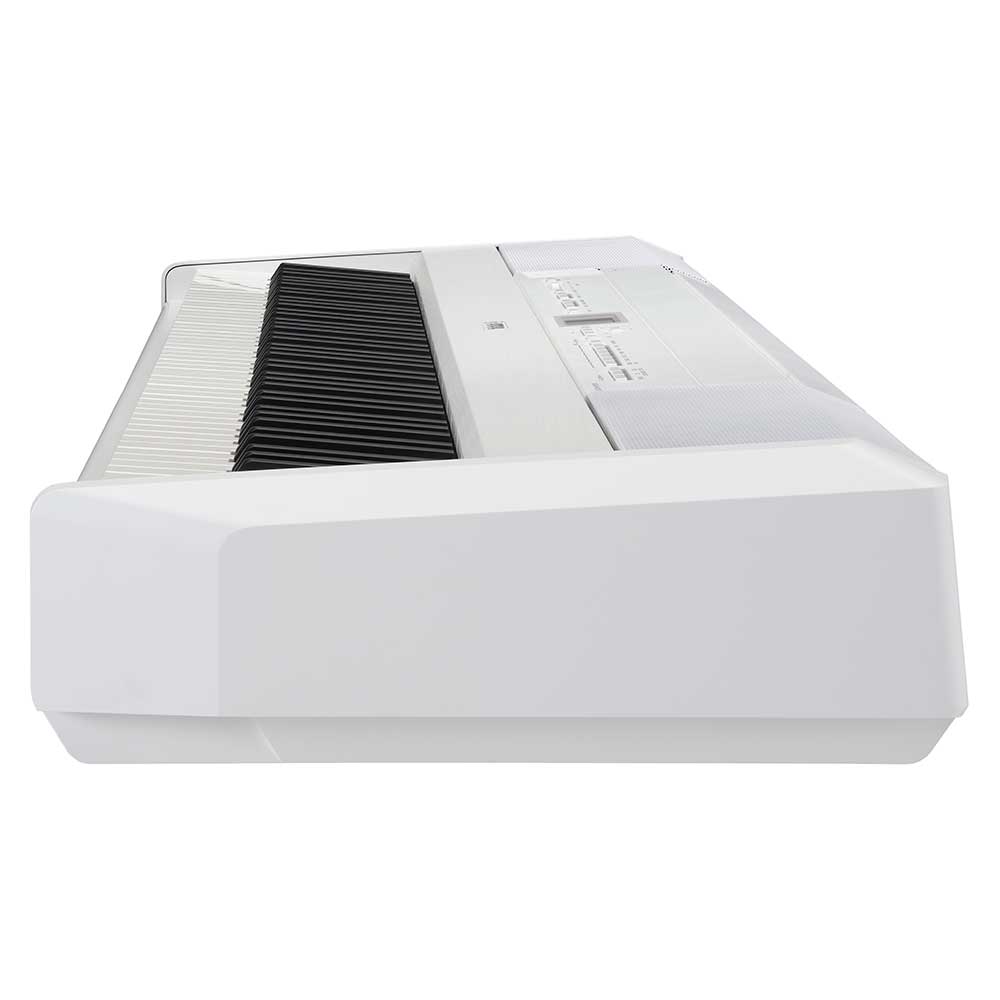

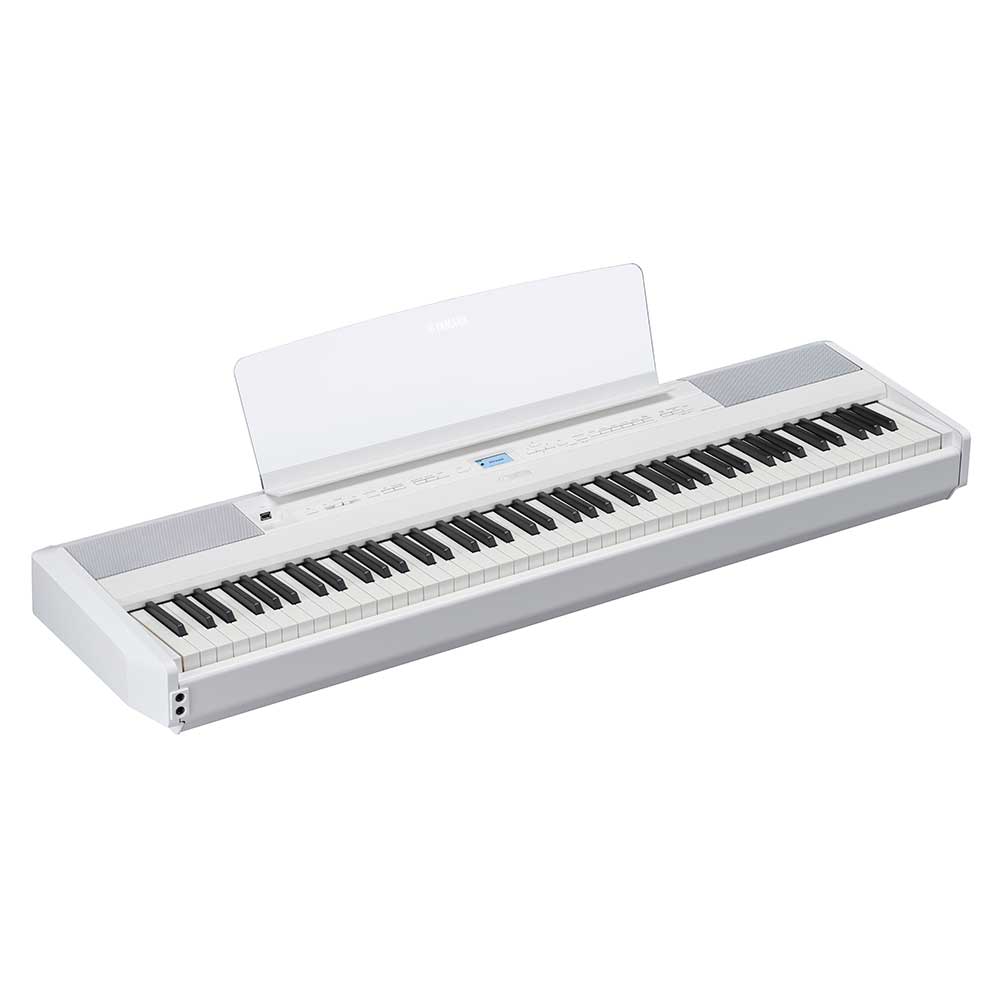

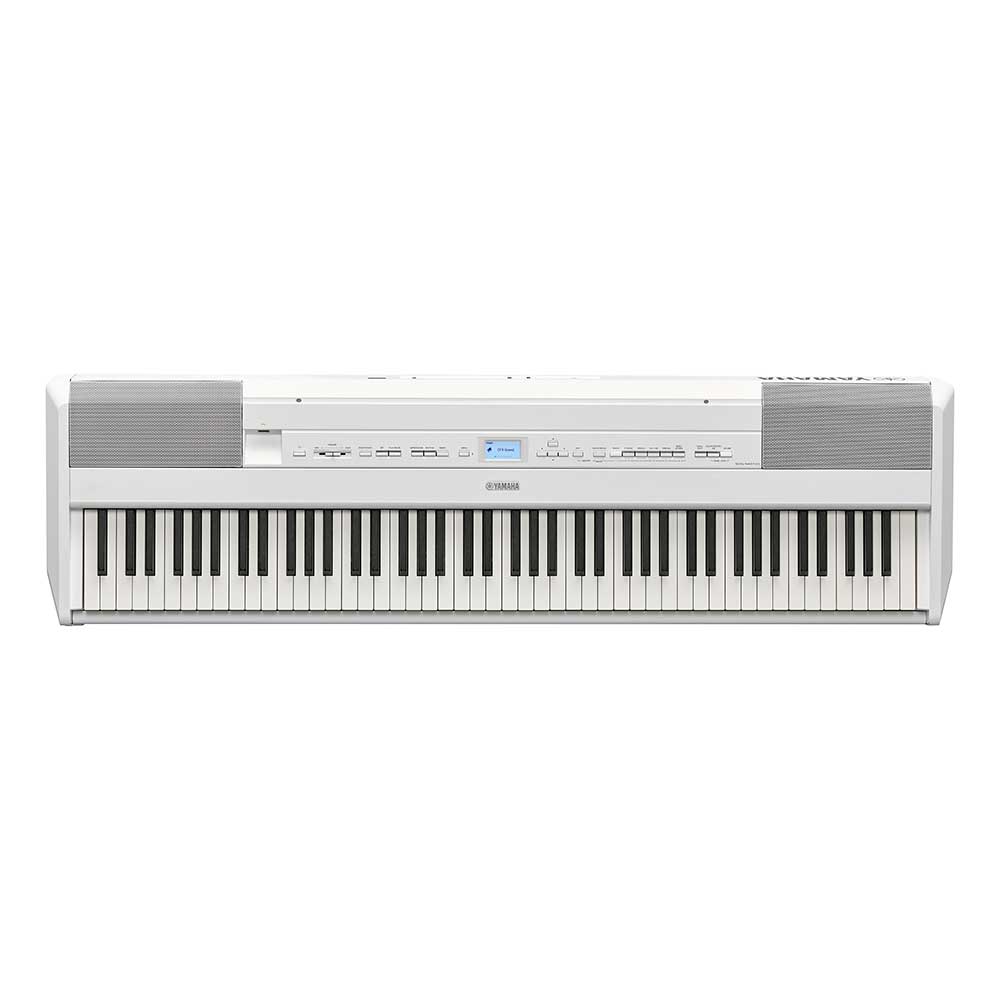

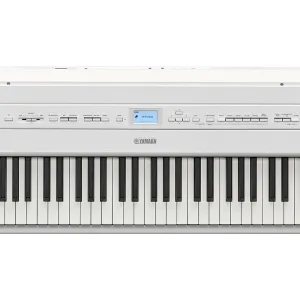

Yamaha P525 Digital Piano in White

PORTABLE NEVER FELT SO GRAND

P-525 TOP-OF-THE-LINE MODEL IN
THE P-SERIES

Featuring authentic piano quality and functionality that will satisfy even experienced pianists.

The P-525 is the flagship model of the world- renowned Yamaha P-Series of compact digital pianos, offering authentic feel, exquisite sound, and further enhanced keyed instrument Voices.

The piano Voices are two world-class concert grand pianos: the Yamaha CFX and Bösendorfer Imperial. Its speaker output and the variety and quality of its Voices, including organs and electric pianos, are vastly enhanced from its predecessor, the P-515.

The wooden keyboard—highly acclaimed for its feel— has been upgraded from the NWX keyboard to the 88-key GrandTouch-S™ keyboard. This brings the playing experience even closer to the touch of a grand piano.

With the Registration Memory function for saving and recalling settings and other useful and convenient features for intimate live performances, the P-525 is also well equipped to serve as a stage piano.

• GrandTouch-S™ keyboard with wooden keys CFX and Bösendorfer Imperial piano samples CFX Binaural sampling
• Grand Expression Modeling
• Virtual Resonance Modeling (VRM)
• 44 Voices + 18 Drum/SFX Kits + 480 XG Voices 40 Rhythms
• 256-note polyphony
• 7 Reverb types; 3 Chorus types; 12 Insertion types
• Intelligent Acoustic Control (IAC), 3 Sound Boost types, Stereophonic Optimizer, Master EQ 3 Preset
• + 1 User

COLOUR VARIATION:

16-track on-board recording
Preset Songs: 21 Voice Demo & 50 Classic USB-to-Host (Type C); USB-to-Device (Type B) Amplifiers: (20 W + 6 W) x 2; Speakers:
(Oval (12 cm x 6 cm) + 2.5 cm (dome)) x 2
Built-in Bluetooth® for wireless connection to Smart Devices and apps GRANDTOUCH-S™ KEYBOARD OFFERS A REALISTIC PLAYING FEEL

The P-525 features the highly playable GrandTouch-S™ keyboard, which also equips Yamaha's top-flight Clavinova digital pianos. The feel of the keys is as close as it gets to the touch of a grand piano. GrandTouch-S™ keyboard also faithfully simulate tonal variation from subtle differences in how hard, quickly, and heavily they are played, affording grand piano-like variety and richness of tone. The keys are made of solid wood, and the laminated structure makes them resistant to warping and exceptionally durable.

USING THE LATEST TECHNOLOGY TO SIMULATE THE RICH RESONANCE CREATED BY THE ACOUSTIC GRAND PIANO MECHANISM

Acoustic grand pianos emit sound through the complex movements of a vast number of parts, namely hammers connected to the keys that strike strings inside a wooden case that amplifies the sound. This mechanism, which took centuries to perfect, is absent from digital pianos.Yamaha uses proprietary know-how and technology to simulate the sound produced by the grand piano mechanism in its digital pianos. Grand Expression Modeling digitally simulates tonal variance by accurately sensing the slightest differences in the speed and intensity of the player's input. Virtual Resonance Modeling (VRM) simulates and outputs the rich tones produced by the vibrations and sympathetic resonance of the strings, damper, body, and duplex scaling of a grand piano in response to the player's input on the keyboard.

EQUIPPED WITH CONVENIENT FEATURES FOR LIVE PERFORMANCES

The P-525 features the Registration Memory function for saving and recalling settings, which is useful and convenient for intimate live performances in cafés, bars, and other small venues. You can program all the Voices and Rhythms in the comfort of home and call them up at the venue when you are ready to play. It is also easy to switch between Voices in the middle of songs.

Other features include Sound Boost and adjustable EQ to ensure that the piano can be heard when playing with other instruments in a band.

PLAY REALISTIC RENDITIONS OF CLASSIC SONGS OF YESTER YEAR

The P-525 features improved organ, electric piano, and other keyed instrument Voices. The engineers           who         achieved     these improvements are experts in the sound of electric organs and electric pianos and the musical culture associated with them. Their efforts to create faithful, high-quality simulations of familiar sounds—the attack of an organ and the distinctive sound of its Leslie speakers, the reverb, distortion, and other sound effects of the electric pianos that defined 70s and 80s pop music—result in realistic, immersive experiences that make you feel like you are actually playing those instruments.

ACCESS THE FEATURES OF THIS INSTRUMENT WITH GREATER EASE FROM THE APP

EASILY RECORD SOUND AND VIDEO, AND UPLOAD YOUR OWN PERFORMANCES

By linking the P-525 with Yamaha's dedicated "Smart Pianist" digital piano app, you can intuitively perform all operations on the P-525 from the screen of your smart device. There's no longer any need to pull out the manual to see how things work.

If you want to take a video of your performance and share it on platforms such as YouTube and TikTok, Rec'n'Share is the way to go. Connect the P-525 to your smart device, and record both video and audio at the same time to complete your video.

A cable connection is required. Make sure to purchase the correct cable for your smart device.

DEDICATED OPTIONAL STAND AND SUSTAIN PEDAL AVAILABLE FOR MORE AUTHENTIC PERFORMANCES

If you want to play your P-525 like an acoustic piano instead of casually on a tabletop or desktop, we offer an optional stand L-515 and three-pedal unit LP-1 (including damper pedal with half-pedaling capability) that works just like the pedals on a grand piano.
We also offer the optional three-pedal unit FC35 (which features a damper pedal compatible with the half-pedal function), and the included FC3A (a sustain pedal compatible with half pedaling).

The pedal shown is the FC35.

BLUETOOTH® AUDIO AND MIDI FUNCTIONALITY FOR EVEN MORE ENJOYMENT

The P-525 features built-in Bluetooth® audio, which lets you pair this instrument with your Bluetooth®-enabled smartphone or tablet to listen to your favorite music through the instrument's speakers. You can also play along with the sound coming from the instrument's speakers.

Furthermore, built-in Bluetooth® MIDI functionality allows you to use the Smart Pianist app over a wireless connection.

Hear, Try and Compare the Yamaha P525 Digital Piano in our showroom

Located in Leicester in the central Midlands and close to Coventry, Nottingham, Derby, Birmingham and Warwick we promise you that a visit to our specialist Digital Piano and Keyboard showroom will not disappoint. Try the full Yamaha range including the P525 Digital Piano and compare it with Kawai, Roland, Casio and Korg all under one roof. Whatever your playing standard our knowledgeable and friendly experts will help guide you through the Piano buying process and make sure that you are buying the right instrument for your needs. As ex teachers we are ideally placed to advise and answer any questions you may have. Lifetime support and product tuition with ALL digital pianos.

Do you live with a 40 mile radius of Leicester?

If so then you qualify for Keysounds VIP delivery service. Our own van 2 man delivery goes beyond a standard delivery. With allocated time slots we can delivery at a convenient time for you. All new Pianos are delivered boxed and assembled at your home by our experts. We will also remove all packaging for recycling.

We sell Digital Pianos and Keyboards. That's it. Nothing else. No distractions and nothing to steal our focus.

SPECIFICATION CHART

MODEL NAME		P-525
PRODUCT NAME		Digital Piano
SIZE/WEIGHT
Dimensions	Dimensions (W × H × D)	1,336 mm × 145 mm × 376 mm (52-5/8" × 5-11/16" × 14-13/16")
Weight		22.0 kg (48 lb, 8 oz)
CONTROL INTERFACE
Keyboard	Type, Number of Keys	GrandTouch-S™ Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement, 88
	Touch Sensitivity	Hard2/Hard1/Medium/Soft1/Soft2/Fixed
Pedal	Number of pedals	3 (When using the pedal unit, LP-1/FC35)
	Assignable Functions	Sustain (Switch), Sustain (Continuous), Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause
Display	Type	Full Dots LCD
	Size	198 × 100 dots
	Language	English, Japanese
VOICES
Tone Generation	Piano Sound	Yamaha CFX, Bösendorfer Imperial
	Binaural Sampling	Yes ("CFX Grand" Voice only)
	Virtual Resonance Modeling Lite (VRM Lite)	Yes
	Grand Expression Modeling	Yes
Polyphony	Number of Polyphony (Max.)	256
Preset	Number of Voices	44 Voices + 18 Drum/SFX Kits + 480 XG Voices
Compatibility		XG (GM), GS (for Song playback), GM2 (for Song playback)
EFFECTS
Types	Reverb	7 types
	Chorus	3 types
	Master EQ	3 Preset + 1 User
	Insertion Effect	12 types
	Intelligent Acoustic Control (IAC)	Yes
	Stereophonic Optimizer	Yes
	Sound Boost	3 types
Functions	Dual	Yes
	Split	Yes
	Duo	Yes
SONGS
Preset	Number of Preset Songs	21 Voice Demo Songs + 50 Classics
MIDI Recording	Number of Songs	250
	Number of Tracks	16
	Data Capacity	Approx. 500 KB/Song
Audio Recording (USB)	Recording Time (max.)	80 minutes/Song
Compatible Data Format	Playback	SMF (Format 0, Format 1), WAV (44.1 kHz sample rate, 16-bit resolution, stereo)
	Recording	SMF (Format 0), WAV (44.1 kHz sample rate, 16-bit resolution, stereo)
FUNCTIONS
Piano Room		Yes
Rhythm	Number of Rhythms	40
Registration Memory	Number of Buttons	6 (×4 banks)
Overall Controls	Metronome, Tempo Range	Yes, 5 – 500
	Transpose	−12 – 0 – +12
	Tuning	414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
	Scale Type	7 types
	USB Audio Interface	44.1 kHz, 16 bit, Stereo
MODEL NAME		P-525
Bluetooth® (May not have this func- tionality depending on the country in which you purchased the product.)	Audio	Supported profile: A2DP, Compatible codec: SBC
	MIDI	Comply with Bluetooth Low Energy MIDI Specification
	Bluetooth® version	5.0
	Maximum communication distance	Approx. 10 m
	Radio Frequency	2,401 – 2,481 MHz
	Maximum output power (EIRP)	4 dBm
	Type of modulation	GFSK
STORAGE AND CONNECTIVITY
Storage	Internal Memory	Total maximum size approx. 1.4 MB
	External Drives	USB flash drive
Connectivity	Headphones	2x Standard stereo phone jack (PHONES/OUTPUT)
	MIDI	IN, OUT
	AUX IN	Stereo mini jack
	AUX OUT	Standard phone jack [L/L+R] [R]
	AUX PEDAL	Yes
	USB TO HOST	Type C
	USB TO DEVICE	Type A
	DC IN	16 V
	Pedal Unit	Yes (LP-1 / FC35)
AMPLIFIERS AND SPEAKERS
Amplifiers		(20 W + 6 W) × 2
Speakers		(Oval (12 cm × 6 cm) + 2.5 cm (dome)) × 2
POWER SUPPLY
AC Adaptor		PA-300C (Output: DC 16 V, 2.4 A)
Power Consumption		18 W (When using PA-300C AC adaptor)
ACCESSORIES
Separately Sold Accessories (May not be available depending on your area.)		Keyboard stand (L-515), Pedal unit (LP-1/FC35) Headphones (HPH-50/HPH-100/HPH-150), Footswitches (FC4A/FC5) Foot pedal (FC3A), AC adaptor (PA-300C) USB wireless LAN adaptor (UD-WL01)
Included Accessories		Owner's Manual, Online Member Product Registration, Music rest, Foot pedal FC3A, Power cord*, AC adaptor PA-300C* *May not be included depending on your area. Check with your Yamaha dealer.

* The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file. Since specifications, equipment or separately sold accessories may not be the same in every locale, please check with your Yamaha dealer.

Yamaha Music Europe GmbH • Siemensstr. 22-34 • 25462 Rellingen/Germany
www.yamaha.com

The descriptions and photos in this brochure are for information only. YAMAHA reserves the right to change the products and technical data at any time without notice.
As the technical data may vary from country to country, please obtain information from your Yamaha subsidiary. No liability is accepted for printing errors. Status: September 2023.
